斐讯N1安装FnOS

飞牛OS开启了arm版公测，首批适配机型中有斐讯N1，于是手上闲置的N1终于可以不用吃灰了。

手上这台N1当前运行的是armbian系统，安装方法以前发过斐讯N1恢复原厂系统并重新安装Armbian

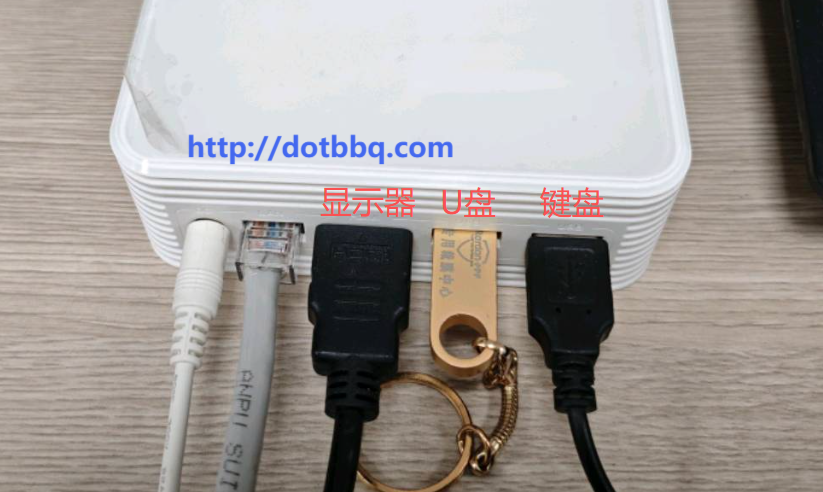

此次安装就方便多了，将系统镜像通过工具Rufus写入U盘，将U盘插入左侧U口(HDMI右侧)，然后加电开机即可通过U盘引导。

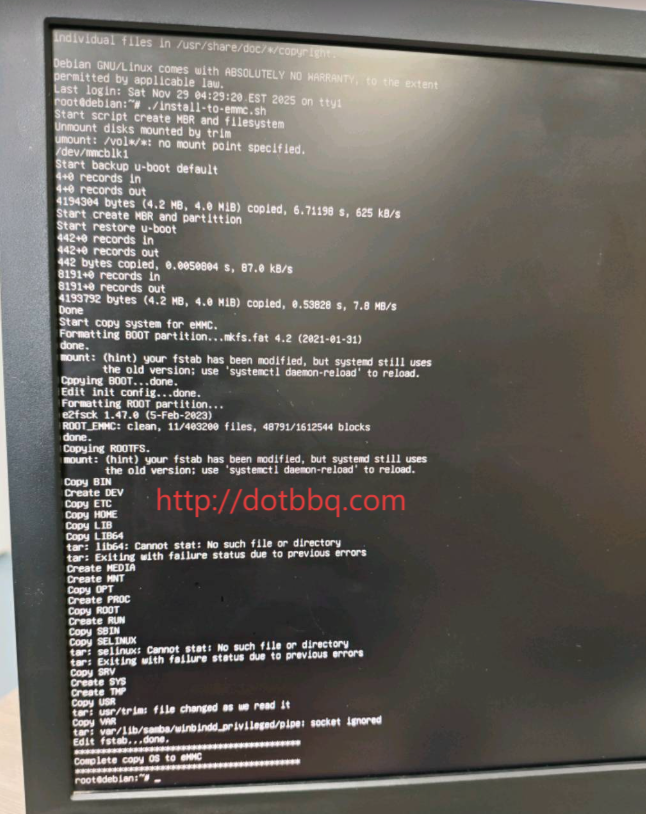

进入U盘系统后，登陆root用户，密码也是root，执行以下命令将系统安装到内置硬盘(eMMC)

./install-to-emmc.sh

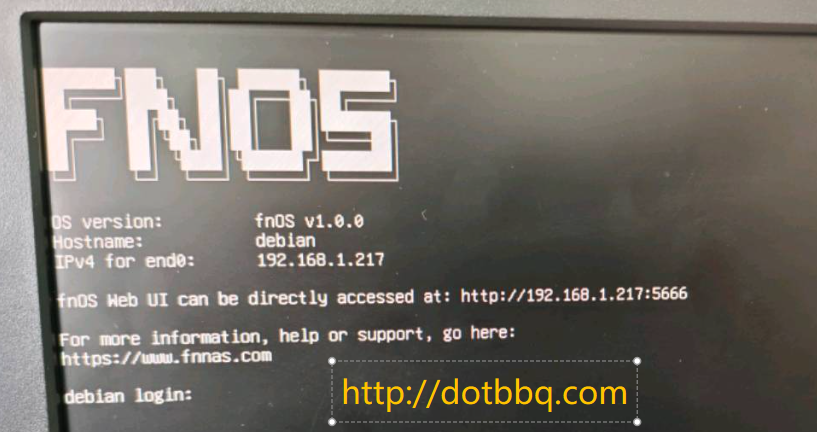

安装完成后运行halt命令关机，去掉U盘即可，重新开机后通过路由器后台或者显示器可以看到系统IP，浏览器打开http://ip:5666开始设置系统。

另外，由于测试系统没有公测资格的账号无法访问app商店，以下提供部分缺失app的安装包。

相册 trim.photos.fpk (访问密码: 3705)
媒体 trim.media.fpk (访问密码: 3705)
下载 easydown.fpk (访问密码: 3705)
百度网盘 baidu.netdisk.fpk (访问密码: 3705)

在应用中心左下角点击手动安装，选择下载的.fpk文件。

7G的emmc可怜的剩余800m左右，看来得外接usb移动硬盘才能正常使用了。

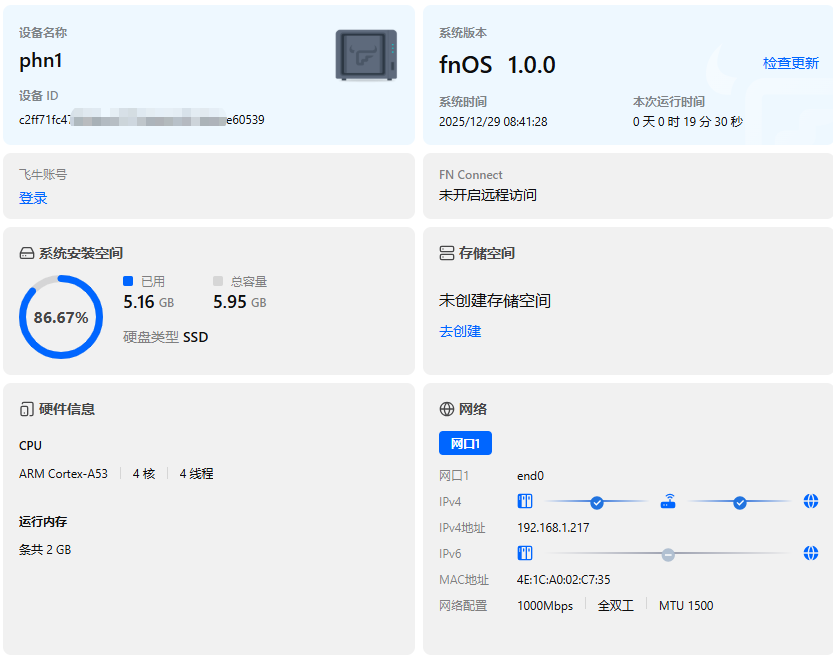

系统信息检查 #

bbq@phn1:/$ sudo neofetch
       _,met$$$$$gg.          root@phn1
    ,g$$$$$$$$$$$$$$$P.       ---------
  ,g$$P"     """Y$$.".        OS: Debian GNU/Linux 12 (bookworm) aarch64
 ,$$P'              `$$$.     Host: Phicomm N1
',$$P       ,ggs.     `$$b:   Kernel: 6.12.41-trim
`d$$'     ,$P"'   .    $$$    Uptime: 15 mins
 $$P      d$'     ,    $$P    Packages: 1173 (dpkg)
 $$:      $$.   -    ,d$$'    Shell: bash 5.2.15
 $$;      Y$b._   _,d$P'      CPU: (4) @ 1.512GHz
 Y$$.    `.`"Y$$$$P"'         Memory: 660MiB / 1927MiB
 `$$b      "-.__
  `Y$$
   `Y$$.
     `$$b.
       `Y$$b.
          `"Y$b._
              `"""

bbq@phn1:/$ sudo inxi -F
System:
  Host: phn1 Kernel: 6.12.41-trim arch: aarch64 bits: 64 Console: pty pts/1 Distro: Debian
    GNU/Linux 12 (bookworm)
Machine:
  Type: ARM System: Phicomm N1 details: N/A serial: QD********0
CPU:
  Info: quad core model: N/A variant: cortex-a53 bits: 64 type: MCP
  Speed (MHz): avg: 1512 min/max: 100/1512 cores: 1: 1512 2: 1512 3: 1512 4: 1512
Graphics:
  Device-1: meson-gxl-dw-hdmi driver: meson_dw_hdmi v: N/A
  Device-2: meson-gxl-vpu driver: meson_drm v: N/A
  Device-3: meson-gxl-mali driver: lima v: kernel
  Display: server: No display server data found. Headless machine? tty: 149x44
  API: OpenGL Message: GL data unavailable in console for root.
Audio:
  Device-1: meson-gxl-dw-hdmi driver: meson_dw_hdmi
  Device-2: gx-sound-card driver: gx_sound_card
  API: ALSA v: k6.12.41-trim status: kernel-api
Network:
  Device-1: meson-gxbb-dwmac driver: meson8b_dwmac
  IF: end0 state: up speed: 1000 Mbps duplex: full mac: 4e:1c:a0:02:c7:35
  Device-2: ethernet-phy-id0181.4400 driver: Meson GXL Internal PHY
  Device-3: pwm-clock driver: pwm_clock
  IF-ID-1: docker0 state: down mac: 72:0b:df:e5:f4:31
Drives:
  Local Storage: total: 7.28 GiB used: 5.22 GiB (71.7%)
  ID-1: /dev/mmcblk1 type: Removable model: 8GME4R size: 7.28 GiB
Partition:
  ID-1: / size: 5.97 GiB used: 5.16 GiB (86.4%) fs: ext4 dev: /dev/mmcblk1p2
  ID-2: /boot size: 487.7 MiB used: 64.6 MiB (13.3%) fs: vfat dev: /dev/mmcblk1p1
Swap:
  Alert: No swap data was found.
Sensors:
  Src: lm-sensors+/sys Message: No sensor data found using /sys/class/hwmon or lm-sensors.
Info:
  Processes: 222 Uptime: 16m Memory: 1.88 GiB used: 792.2 MiB (41.1%) Init: systemd
  target: graphical (5) Shell: Sudo inxi: 3.3.26

bbq@phn1:/$ iperf3 -s
-----------------------------------------------------------
Server listening on 5201 (test #1)
-----------------------------------------------------------
Accepted connection from 192.168.1.31, port 61190
[  5] local 192.168.1.217 port 5201 connected to 192.168.1.31 port 61191
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec   102 MBytes   855 Mbits/sec
[  5]   1.00-2.00   sec   104 MBytes   876 Mbits/sec
[  5]   2.00-3.00   sec   102 MBytes   859 Mbits/sec
[  5]   3.00-4.00   sec  95.8 MBytes   804 Mbits/sec
[  5]   4.00-5.00   sec  97.2 MBytes   815 Mbits/sec
[  5]   5.00-6.00   sec  97.5 MBytes   818 Mbits/sec
[  5]   6.00-7.00   sec   103 MBytes   861 Mbits/sec
[  5]   7.00-8.00   sec  99.7 MBytes   837 Mbits/sec
[  5]   8.00-9.00   sec   101 MBytes   848 Mbits/sec
[  5]   9.00-10.00  sec  97.7 MBytes   819 Mbits/sec
[  5]  10.00-10.03  sec  2.96 MBytes   813 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-10.03  sec  1003 MBytes   839 Mbits/sec                  receiver
-----------------------------------------------------------
Server listening on 5201 (test #2)
-----------------------------------------------------------

bbq@phn1:/$ sudo hdparm -Tt /dev/mmcblk1

/dev/mmcblk1:
 Timing cached reads:   2154 MB in  2.00 seconds = 1076.82 MB/sec
 Timing buffered disk reads: 448 MB in  3.01 seconds = 148.94 MB/sec
